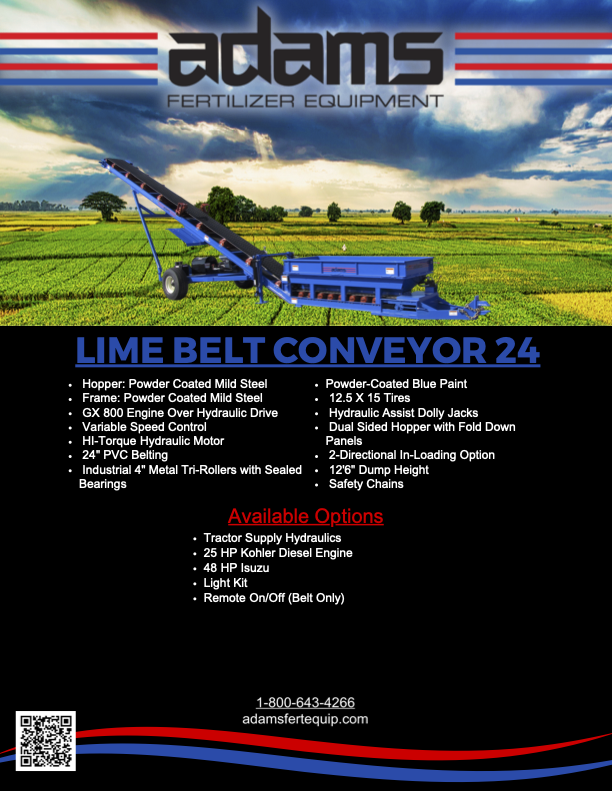

Lime Belt Conveyor
Frame
Mild Steel
Hopper
Mild Steel

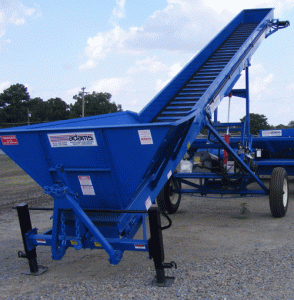

Adams Lime/Fertilizer Bulk loader conveyor is an all self contained unit, 25 hp Kohler engine over hydraulic drive, variable speed control, hi-torque hydraulic drive motor, 24” PVC belting, industrial duty 4” metal tri-roller with sealed bearings, all heavy gauge mild steel construction, powder coat paint, 12.5 x 15 tires and wheels, hydraulic assist dolly jacks, dual sided hopper fold down panels for 2-directional in loading option, 8’ 5” flat section, 30’ 10” ft incline section, 12’ 6”dump height, light kit, tow hitch and safety chain.
These units are capable of loading several different products such as lime, fertilizer, sand, grain, gin trash, saw mill by products, light gravel, dry dirt.
Specifications
- 25 HP Kohler Engine Over Hydraulic Drive
- Variable Speed Control
- HI-Torque Hydraulic Motor
- 24" PVC Belting
- Industrial 4" Metal Tri-Rollers with Sealed Bearings
- Powder-Coated Blue Paint
- 12.5 X 15 Tires
- Hydraulic Assist Dolly Jacks

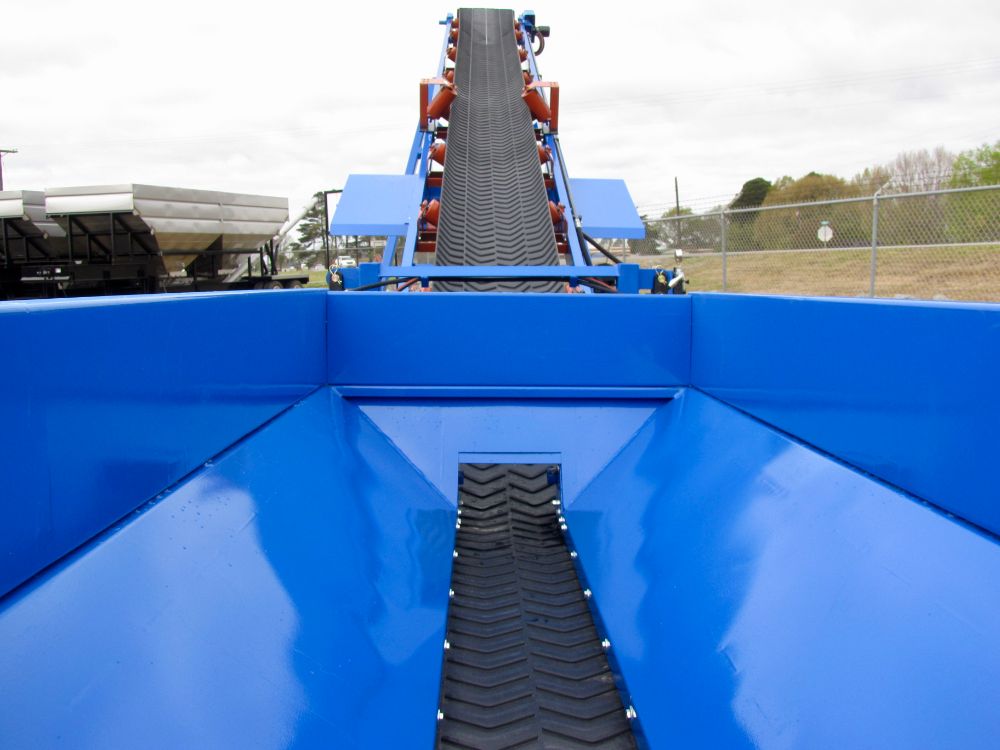

- Dual Sided Hopper with Fold Down Panels
- 2-Directional In-Loading Option
- 12'6" Dump Height
- Light Kit
- Safety Chains
Available Options
- 20 HP Honda Engine
- Tractor Supply Hydraulic
- 25 HP Kohler Diesel Engine
- 49 HP Kubota Engine
