Portable Conveyors






  • Capacity: 2-3 Ton
  • Hopper: 304 Stainless Steel
  • Frame: Mild Steel
  • Length: 24 ft. - 60 ft
Product Details Request a Quote

Specifications

  • 10-15 HP TEFC Motor
  • 120# PVC Belting
  • 3 Roller Idlers on 4 ft. Spacing
  • Mild Steel Square Tubing Undercarriage

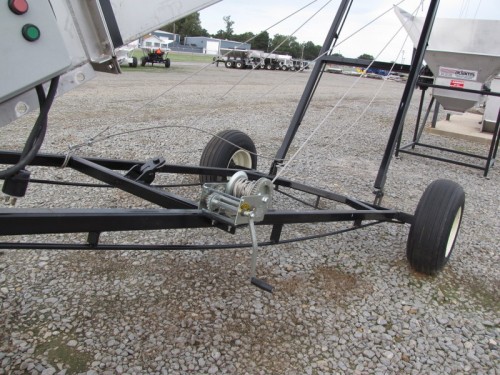

  • Stainless Steel Cable and Winch
  • 11L-15 Tires
  • Tow Hitch
  • Stainless Steel Rain Covers

Available Options

  • 240/480V Start/Stop Box - Mounted
  • 90 Degree Swivel Axle
  • Funnel Hood - Stainless Steel - Adjustable
  • 4.80 - 8 Tail Wheels
  • 20 HP Kohler Gas Over Hydraulic Engine
  • 18" Brush Kit
  • Stainless Steel Under-frame

Product Detail

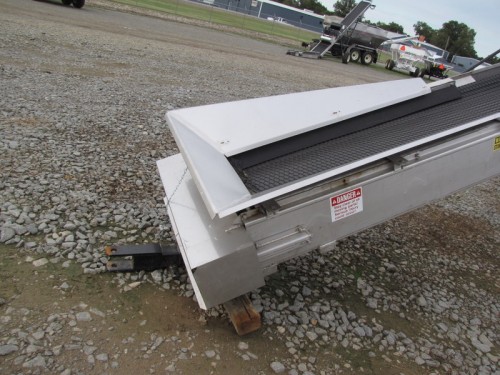

Portable Conveyors from 24' to 60'. Made from 304 Stainless Steel , TOP drives for up to 40' and CENTER drive for 42'-60' Material- 120# pvc belting, 3-roller  idlers on 4' spacing, M/S square tubing frame under carriage (Powder Coated) with Stainless Steel cable lift & winch, 11L - 15 tires & wheels, 10-15 hp TEFC motor (depends on length), tow hitch, unload rate approximately 2-3 tons/min.
