Portable Conveyors
Capacity
2-3 Ton
Frame
Mild Steel
Length
24 ft. - 60 ft
Hopper
304 Stainless Steel

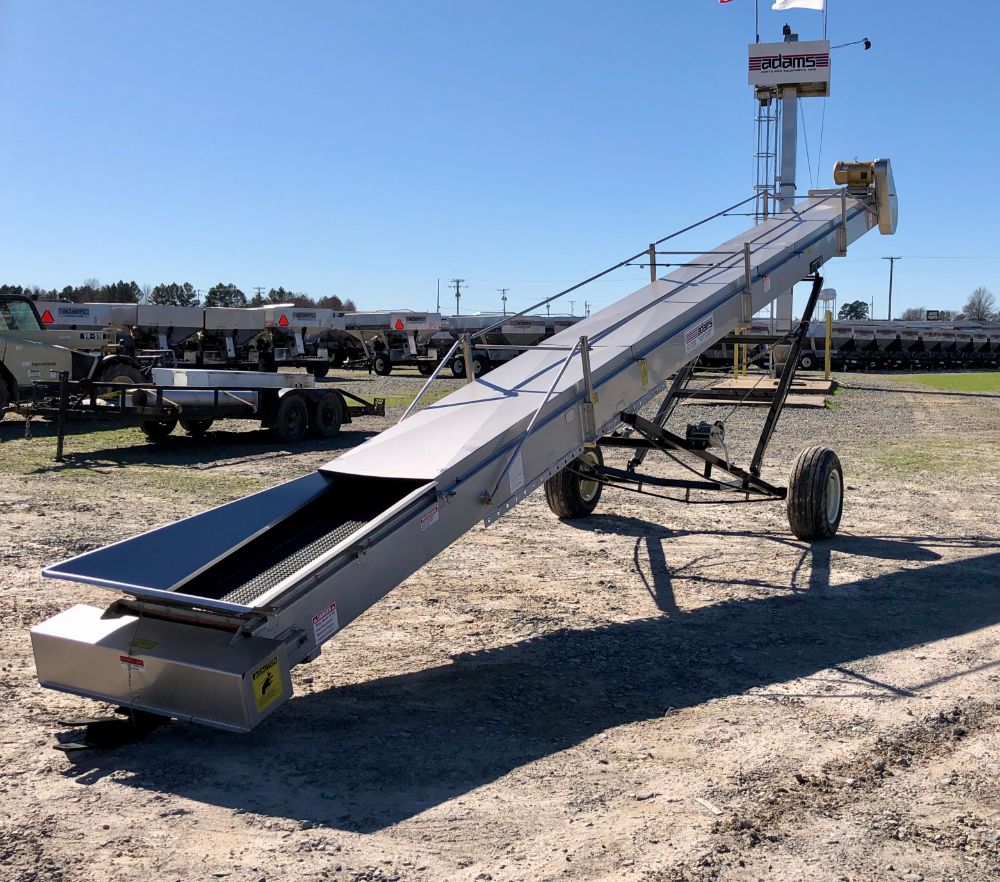

Portable Conveyors from 24′ to 60′. Made from 304 Stainless Steel , TOP drives for up to 40′ and CENTER drive for 42′-60′ Material- 120# pvc belting, 3-roller idlers on 4′ spacing, M/S square tubing frame under carriage (Powder Coated) with Stainless Steel cable lift & winch, 11L – 15 tires & wheels, 10-15 hp TEFC motor (depends on length), tow hitch, unload rate approximately 2-3 tons/min.
Specifications
- 10-15 HP TEFC Motor
- 120# PVC Belting
- 3 Roller Idlers on 4 ft. Spacing
- Mild Steel Square Tubing Undercarriage
- Stainless Steel Cable and Winch
- 11L-15 Tires
- Tow Hitch
- Stainless Steel Rain Covers
Available Options
- 240/480V Start/Stop Box - Mounted
- 90 Degree Swivel Axle
- Funnel Hood - Stainless Steel - Adjustable
- 4.80 - 8 Tail Wheels
- 20 HP Kohler Gas Over Hydraulic Engine
- 18" Brush Kit
- Stainless Steel Under-frame
