FL-24
Portable (Model FL-24)
Capacity
24" x 10 ft. x 26 ft.
Frame
304 Stainless Steel
Length
36 ft Length | 13' 4" Dump Height
Hopper
304 Stainless Steel

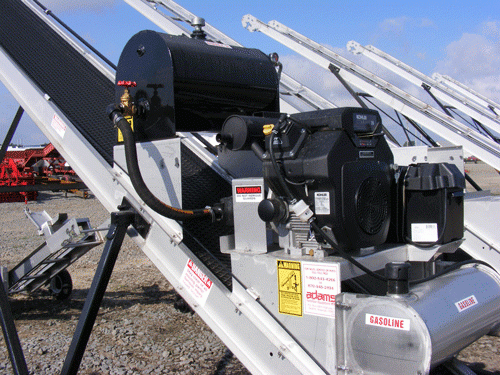

Adams standard field loader conveyors are made of 304 stainless steel trough frame, mild steel powder coated under carriage, standard unit is 24” wide, 10 ft flat intake section, 26 ft incline section with 13’ 4” dump height. The Adams field loader comes with 20 hp air cooled kohler engine with electric start. Hydraulic drive with variable speed control, 11.5 x 15 transport tires, tow hitch, special redesigned transition section to eliminate product interference to reach maximum unload rate of 2-4 tons per minute based on product weight.

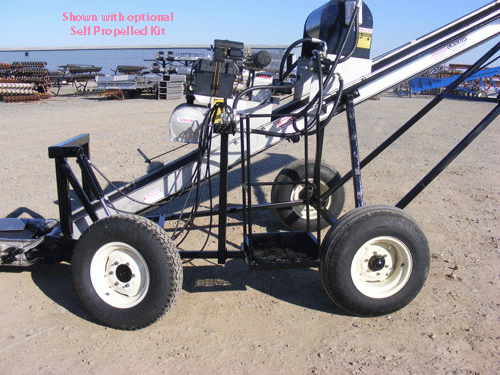

*Please note that the self-propelled kit is an optional add-on.
Product Videos
Specifications
- 20 HP Kohlet Engine
- Gas Power Over Hydraulics
- 24" Wide Belt
- Variable Speed Flow Control
- Adjustable Discharge Chute
- Stainless Steel Fold Down Flapper Wings
- 11L - 15 Tires
- Tow Hitch
Available Options
- 20 HP Honda Engine
- Electronic 20 HP Over Hydraulic
- 240/480 Volt Start/Stop Box
- Self Propelled Kit
- Stainless Steel 12" Square Funnel Hood
- 12" x 8' Funnel Sock
- Tractor Package Hydraulics
- Seed Bag Hopper (4' x 8' w/Gate)
- Stainless Steel Frame
- Stainless Steel Rain Cover
- Extra Length - per ft. - up to 30 ft.
- Mild Steel Under Carriage Frame
- 6" Swivel Caster Wheels & Bracket
- Self Propelled Kit
